Fault Protection on Switch Closure: Safeguarding Power Systems

Fault protection on switch closure is a critical safeguard in power systems, ensuring safe switchgear operation by detecting and responding to faults during switch closure. This mechanism is vital for protecting equipment, personnel, and maintaining system stability.

Rapid Response and Protection

When a switch closes, faults like short circuits or ground faults can cause significant damage. Fault protection devices detect these faults and swiftly disconnect the power supply, minimizing the impact. This rapid action prevents equipment damage, extends device lifespan, and reduces maintenance costs. It also enhances system reliability by preventing faults from spreading and ensures the safe operation of power systems.

Implementation Techniques

1. Overcurrent Protection: This method detects excessive current. Instantaneous overcurrent protection acts within milliseconds to cut off power when current surges. Time-overcurrent protection allows for a brief delay, accommodating different fault magnitudes and durations.

2. Zero-Sequence Protection: Specifically designed for ground faults, this protection activates when zero-sequence currents exceed set thresholds, effectively cutting off power in grounded neutral systems.

3. Reclosing Protection: After detecting a fault and disconnecting power, this mechanism attempts to reclose the switch after a delay. If the fault persists, it locks the switch to prevent multiple reclosures, useful for transient faults.

4. Intelligent Devices: Modern systems use intelligent protection devices equipped with sensors and microprocessors to monitor line status in real-time, identify fault types, and take appropriate actions swiftly.

Applications

- Distribution Lines: Prevents damage and outages caused by customer-side faults, enhancing reliability.

- Substation Outlets: Protects substation equipment from line faults by promptly disconnecting power.

- Long-Distance Transmission Lines: Reduces downtime from remote faults, ensuring stable power supply.

Real-World Impact

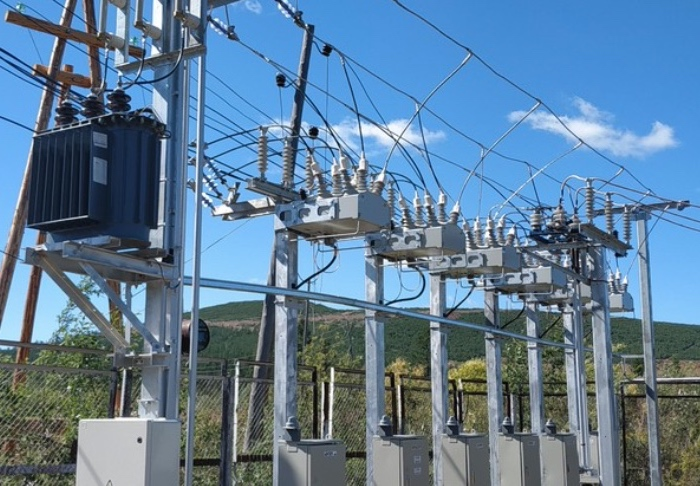

In a practical scenario, a pole-mounted switch closing on a short-circuit fault triggers instantaneous overcurrent protection. The device cuts off power immediately, preventing further damage and recording fault data for analysis. This mechanism ensures equipment and personnel safety while minimizing downtime.

Conclusion

Fault protection on switch closure is essential for power system safety and reliability. By swiftly detecting and responding to faults, it protects equipment, reduces downtime, and ensures stable operation. As technology advances, these protection mechanisms will become more intelligent, further enhancing power system safety and efficiency.
